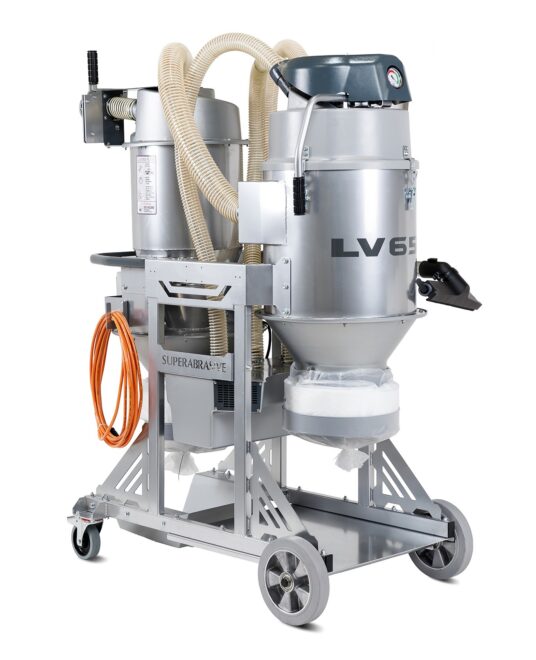

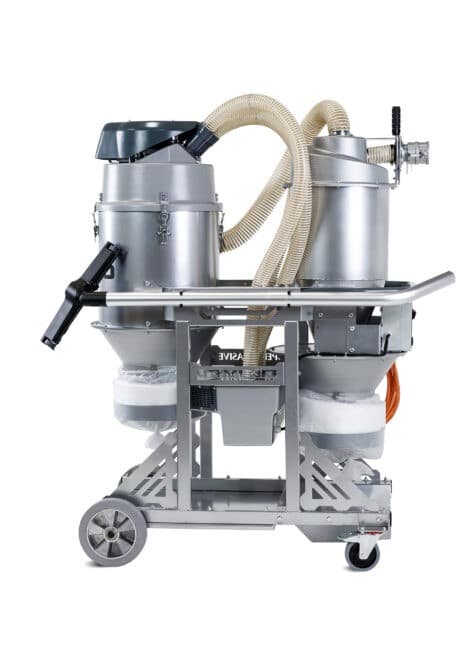

Name: LV650 Dust Extractor
SKU: 11928
Availability: InStock

Electric Dust Extractor LV650

Four-stage dust collection with integrated pre-separator.

Motor: 3 bypass motors

Voltage: Single phase, 115V, 19.5A, 3.4 hp / 2.2 kW

Also offered in 230V, 14A, 4.9 hp / 3.6 kW (LV650-230)

EU model: LV650-EU, 1 phase, 230V, 12.8A, 3.3 kW

Main Filter: Conical, 43 ft²/ 4 m²

HEPA: H13, 32 ft²/ 3 m²

Airflow (max): 286 cfm for LV650-115; 386 cfm for LV650-230

Vacuum (max): 81 water lift for LV650-115; 100.4 water lift for LV650-230

Main Hose: 2.5 in x 32ft / 63 mm x 10 m

Wand Hose: 2 in x 21.3 ft / 50 mm x 6.6 m

Dims: 51 x 29 x 65 in / 130 x 74 x 166 cm

Weight: 308 lbs / 140 kg

LV650 vacuum with integrated pre-separator is suitable for use with 25″/30″ floor grinders. It improves the grinding process by:

Maintaining tool efficiency – dust buildup can clog diamonds and reduce cutting performance.
Less cleanup time – dust is captured immediately instead of spreading across the jobsite.
Reduced wear on machines – dust does not accumulate in motors and bearings.
Better surface visibility – operators can see the scratch pattern clearly.

This means faster production and better floor quality.

LV650 FEATURES:

Multi-stage dust control with pre-separator, conical main filter and Hepa filter
Motors have separate valves and work independently from each other, so vacuum continues to work even if one motor is down.
Heavy-duty metal construction with ergonomic design.
Easy to mount Longopac attachment for dust bagging.

LV650 Dust Extractor
