CNC Breaker Bits

US MSRP

Our breaker bits are segmented diamond tools designed for stock removal and pre-cutting. The breaker is an optional step and should be followed by position “0”.

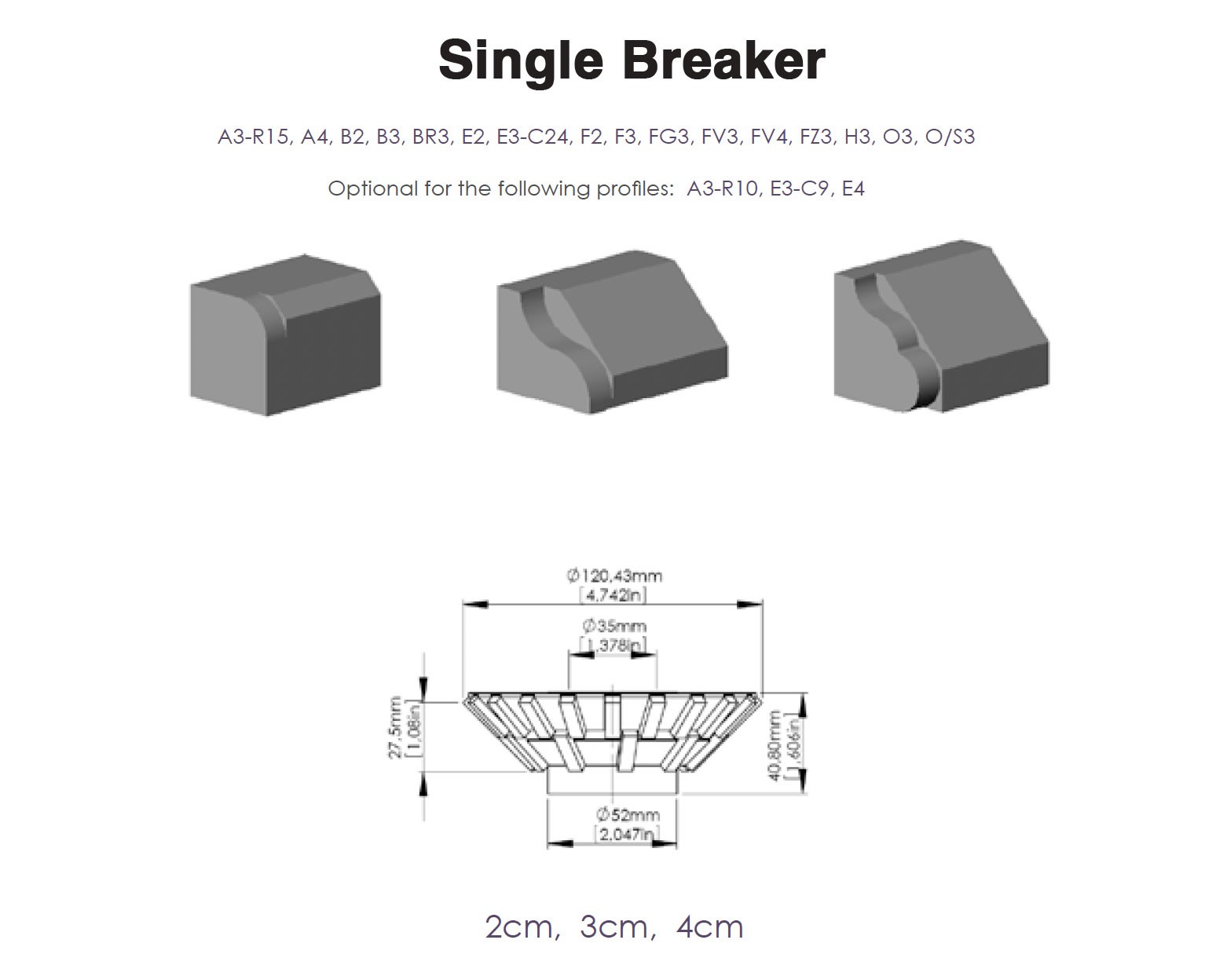

  • The Single breaker is recommended for the following profiles: A3-R15, A4, B2, B3, BR3, E2, E3-C24, F2, F3, FG3, FV3, FV4, FZ3, H3, O3, O/S3; optional for the following profiles: A3-R10, E3-C9, E4

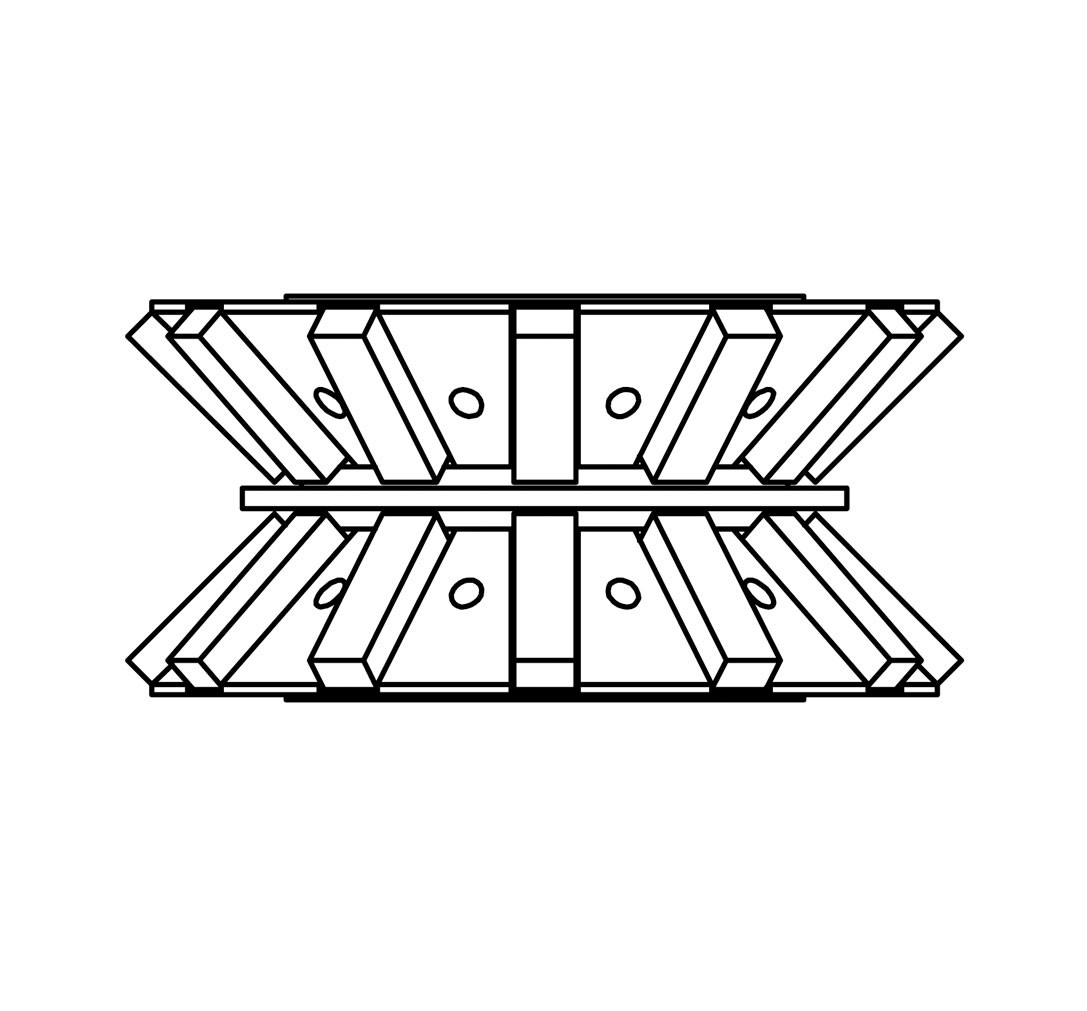

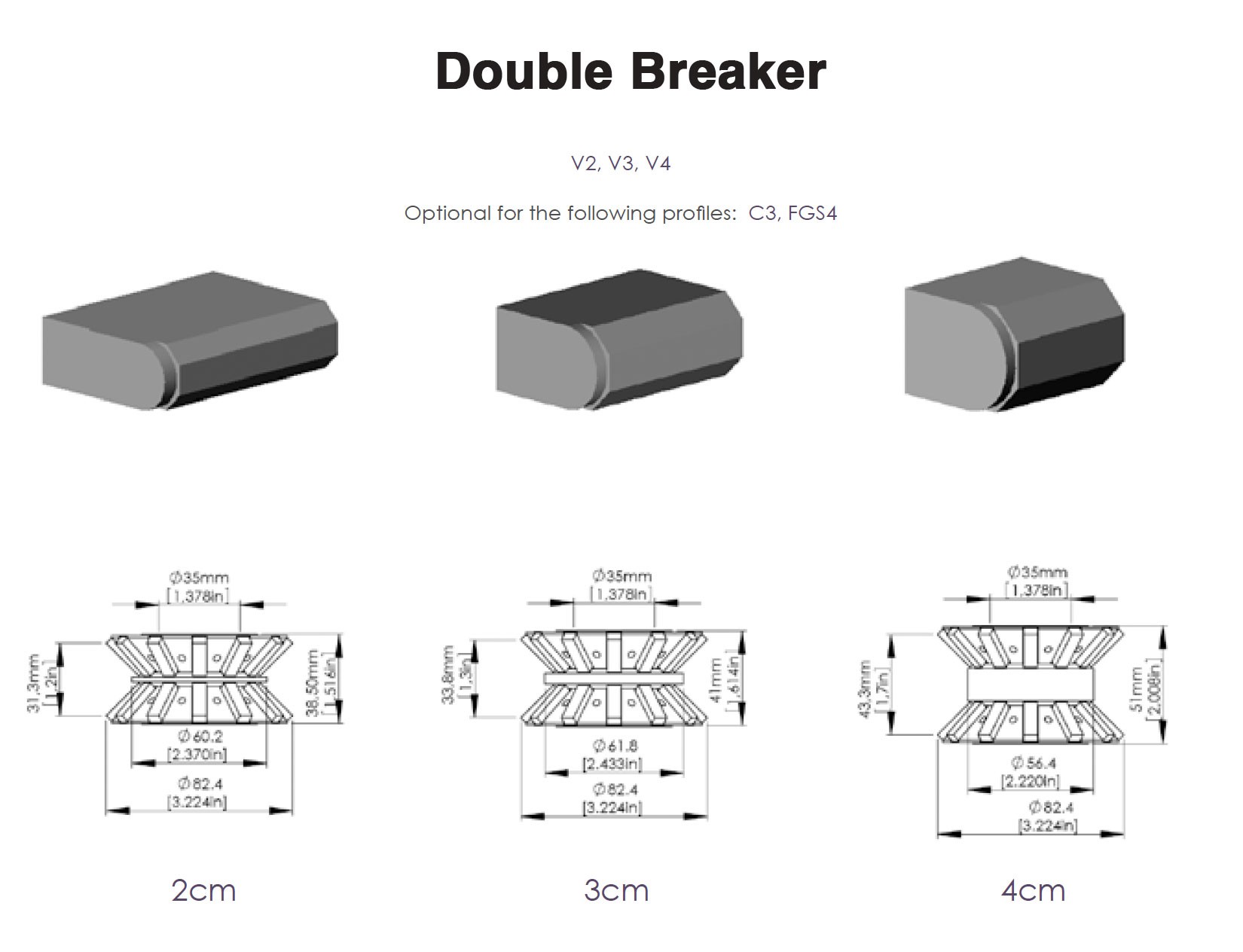

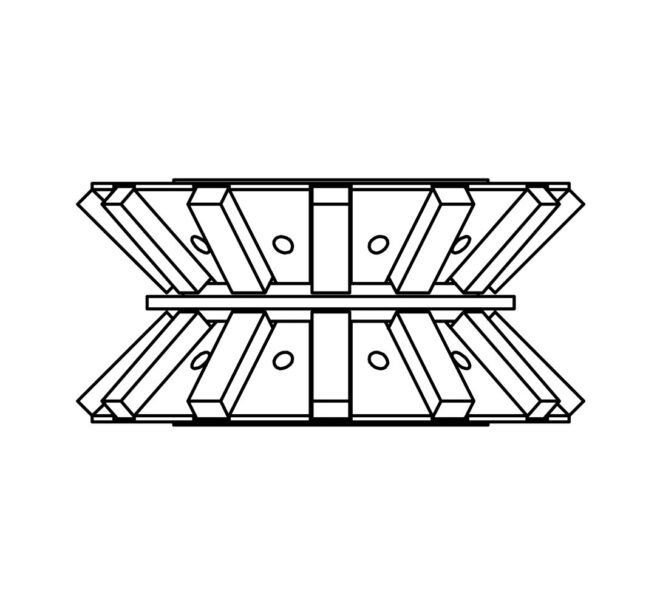

  • The Double breaker is recommended for the following profiles: V2, V3, V4; optional for the following profiles: C3, FGS4
  • Zero Tolerance Z breaker is an optional step that compensates for the finger bit or bridge saw by removing additional material on the stone that is left behind, and eliminates the need to frequently replace and re-calibrate the finger bit. May be used before position “0” for every CNC profile.

Superabrasive CNC Breaker Bits



Item Number Slab Thickness (mm)   Rotation Speed (rpm)   Over Material (mm/in)   Feed (mm/in)
SB/2/3/4-CNC 20-30-40 5000-6000 1.0/0.04 1000-1500 (40-60)
DB2/3/4-CNC 20-30-40 5000-6000 1.0/0.04 760-1500 (30-60)
ZTB2/3/4-CNC 20-30-40   5000-6000   1.0/0.04   1000-1500 (40-60)
