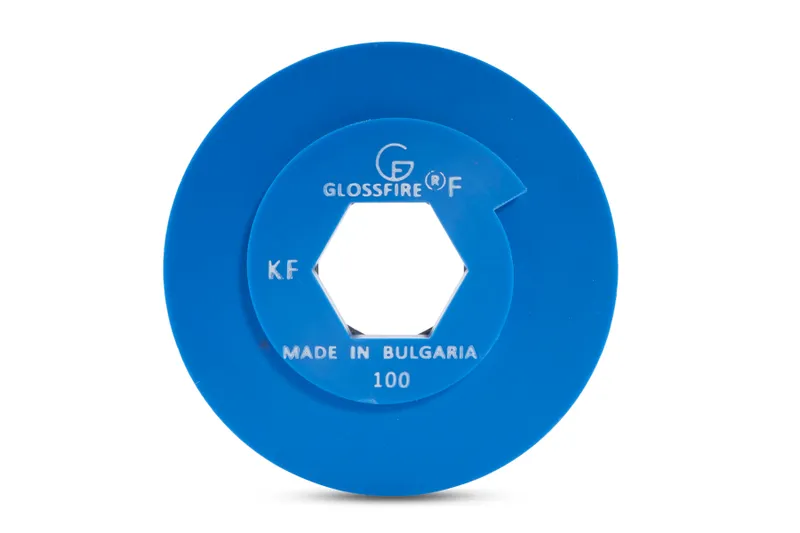

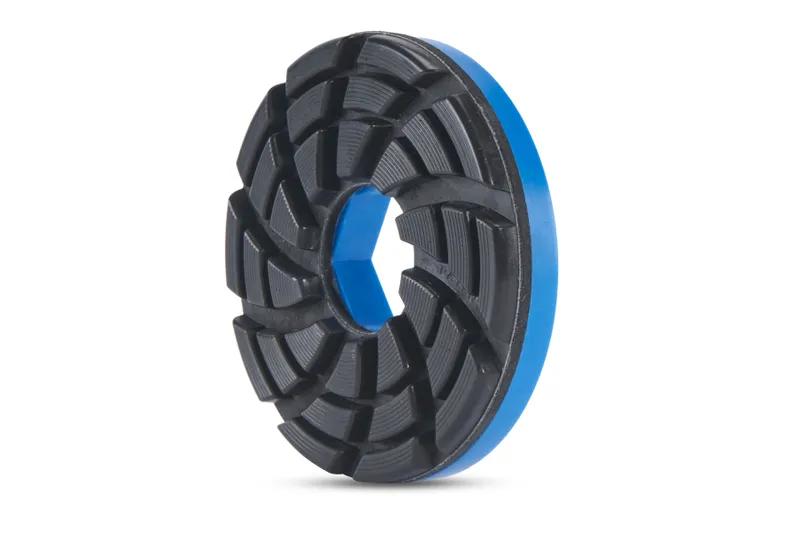

GlossFire Flat Polishing Wheels

GlossFire Flat Polishing Wheels are designed for polishing straight edges with in-line flat edge machines, using the snail lock attachment, such as Marmo Meccanica, Sasso Meccanica (Flying Flat, Flat 62, Flat 8.4, Flat 10.4), Park Industries (Fastback), Montesor (Lola) and others. They work best with a maximum feed speed of 65 cm/minute, with a pressure of 4-5 bars.

Offered in 4″, 5″ and 6″ size with Snail lock attachment.

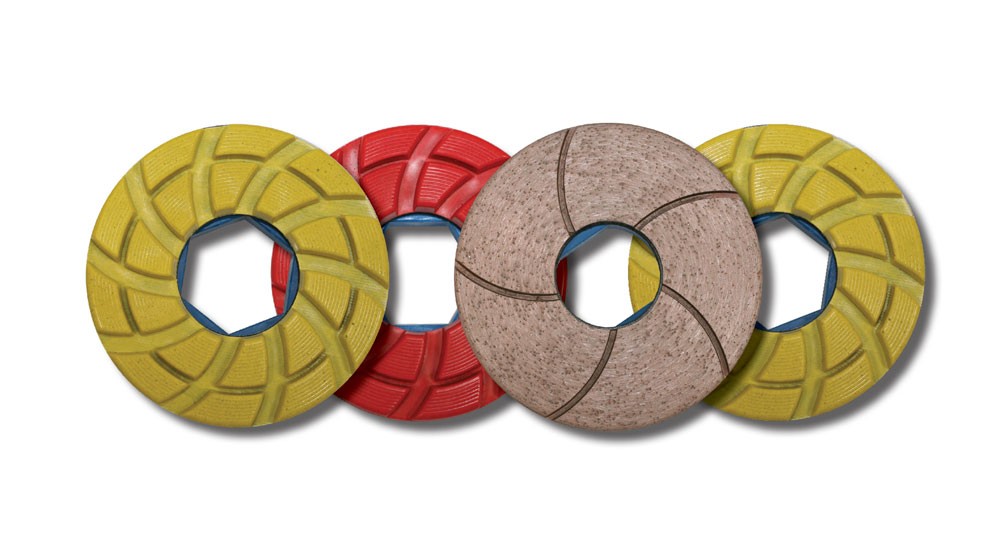

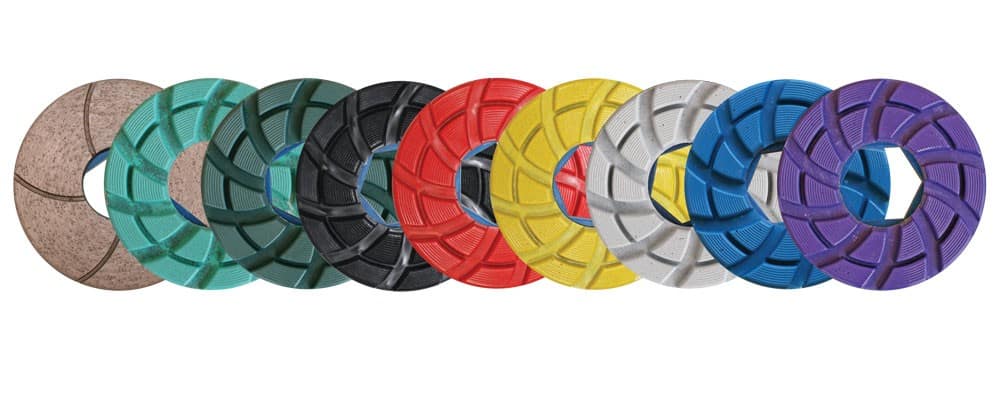

Produced in COPPER Bond and RESIN Bond

COPPER Bond Grit Sizes: 30, 50, 70, 100, 200, 400, 600 grit
RESIN Bond Grit Sizes: 50, 100, 200, 500, 1000, 2000 and BUFF

Suggested Application Data

NATURAL STONE (Granite, Marble):

For 5 head machines, start with grit 200 resin and follow with grits 500, 1000, 2000 and Buff.
For 6 head machines, start with grit 100 resin and follow with grits 200, 500, 1000, 2000 and Buff. For machines with 2 -spindle bevel unit, use copper bond chamfer wheels (1 upper + 1 lower)
For 8 head machines, start with grit 100 copper and follow with grit 100 resin. After that continue with 200 copper, 200 resin, 500, 1000, 2000 and Buff.
- For machines with 2 -spindle bevel unit, use copper bond chamfer wheels (1 upper + 1 lower).
- For machines with 4 -spindle bevel unit, use copper bond chamfer wheels (2 upper + 2 lower).
For 10 head machines, start with grit 100 copper and follow with grit 50 resin, 100 resin, 200 copper, 500, 1000, 2000 and Buff.
- For machines with 2 -spindle bevel unit, use copper bond chamfer wheels (1 upper + 1 lower).
- For machines with 4 -spindle bevel unit, use cooper bond chamfer wheels (2 upper + 2 lower).

ENGINEERED STONE (Man-Made):

For 5 head machines, start with grit 200, 400, 600 copper bonds, and follow with grit 1000, 2000 resin bond.
For 6 head machines, start with grit 100, 200, 400, 600 copper bond, and follow with grit 1000, 2000 resin bond.
For 8 head machines, start with grit 70, 100, 200, 400, 600 copper bond, and follow with grit 500, 1000, 2000 resin bond
For 9 or 10 head machines, start with grit 50, 70, 100, 200, 400, 600 copper bond, and follow with grit 500, 1000, 2000 resin bond. You can leave one of the heads empty or double grit 200 copper bond.
- For machines with 2-spindle bevel unit, use copper bond chamfer wheels (1 upper + 1 lower).
- For machines with 4 -spindle bevel unit, use copper bond chamfer wheels (2 upper + 2 lower).

NOTE: Start at 30 PSI (2 bars) and increase the pressure by 5 PSI (0.3 bars) at each consequent step. For example, if you start with grit 100, you have to set the machine at 30 PSI. For grit 200 – 35 PSI, grit 500 – 40 PSI, grits 1000, 2000 and BUFF – 50PSI.
