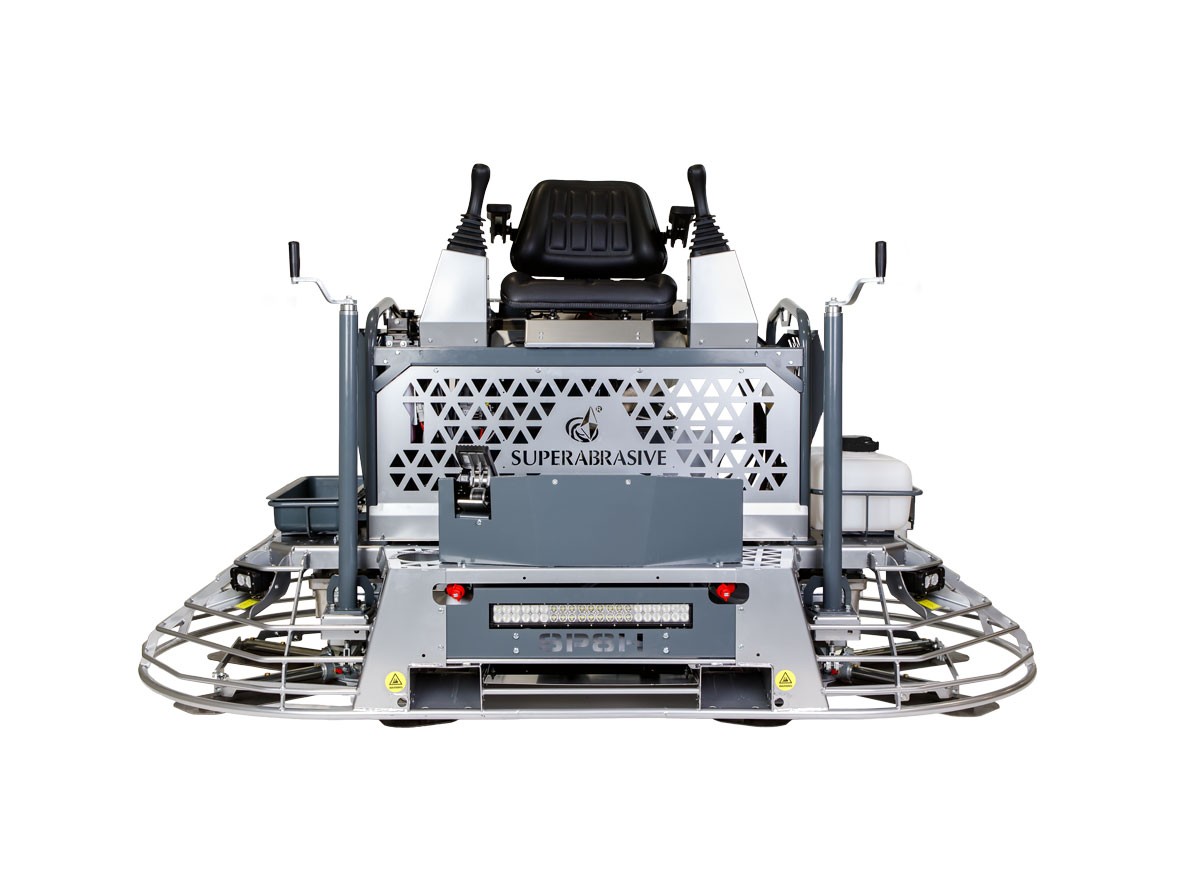

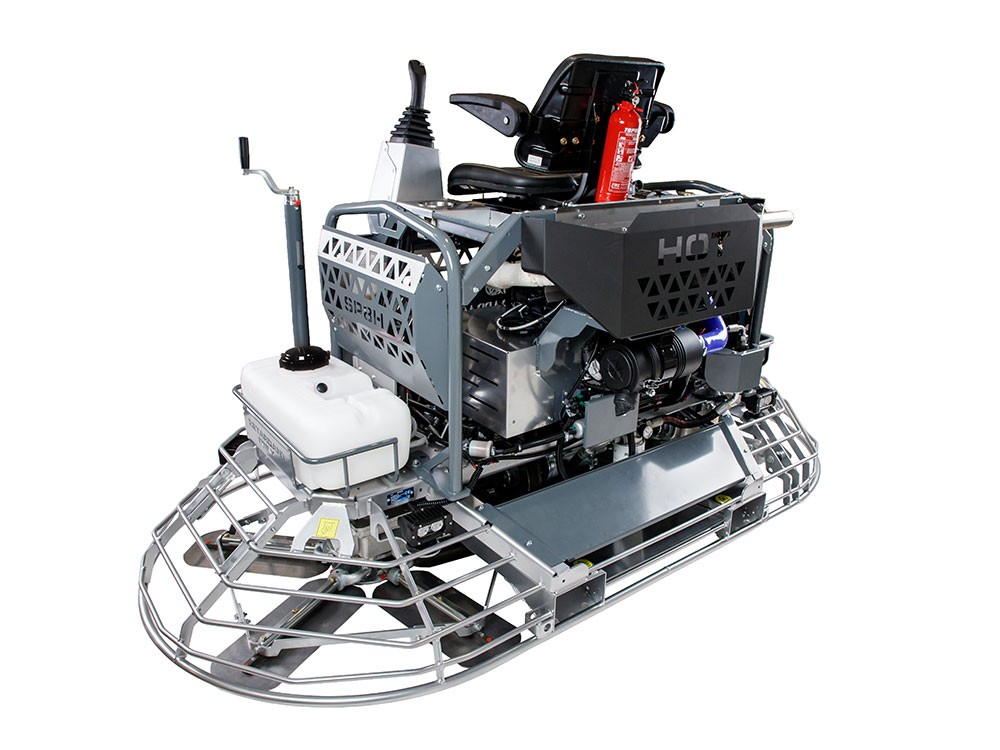

SP8H Ride-On Trowel, 8′

Experience the most comfortable and responsive ride with SP8H.

TROWEL FEATURES:

LESS MAINTENANCE. MORE UPTIME.

Sealed-bearing driveline eliminates daily greasing, significantly reduces maintenance, and delivers long-lasting durability. In-house made helical gearbox, is precision-machined for longterm reliability and smoother power transfer.

PROTECTED WHERE IT COUNTS.

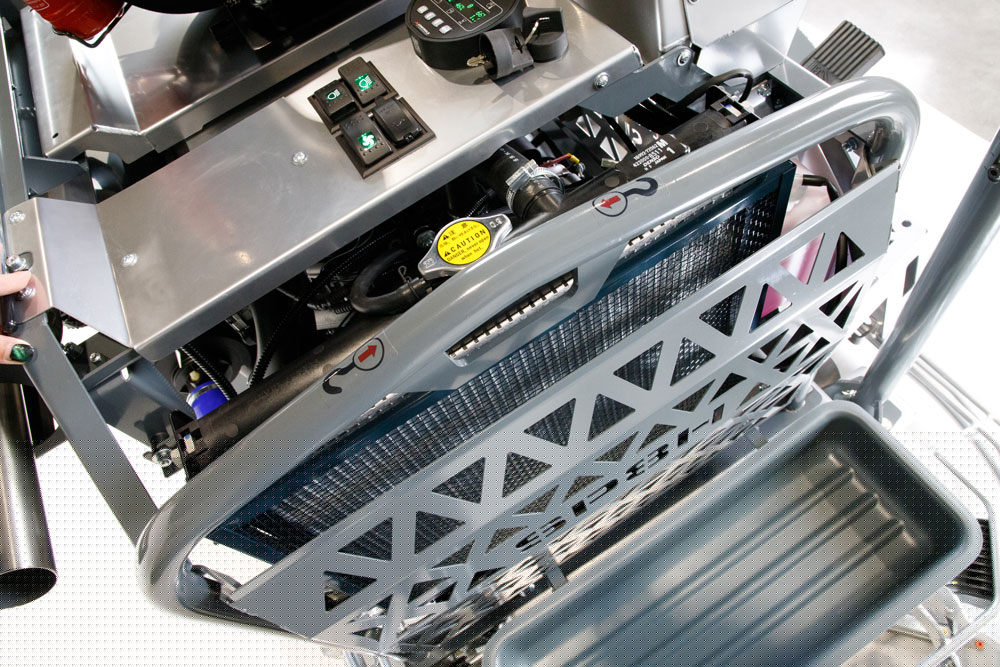

Protective shield between lift pockets reduces concrete splashing and protects the CVT and driveline from debris and impact. Improved fuel system eliminates capmounted float failures, reduces water intrusion, and improves fuel-level accuracy.

SEE BETTER. WORK SAFER.

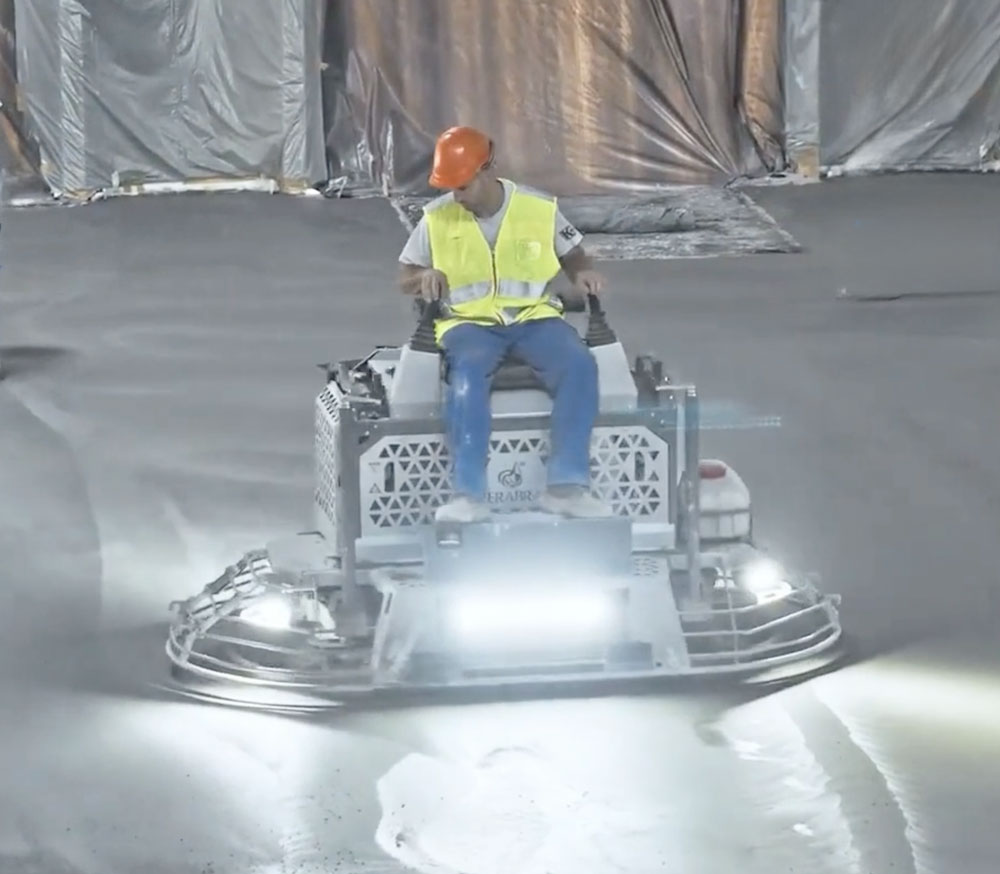

Massive LED light bar plus four adjustable work lights provide excellent visibility during night and early-morning pours. Two front lights protected from impact, and two rear lights with magnetic attachment and telescopic cable for flexible positioning

BUILT FOR SAFE TRANSPORT.

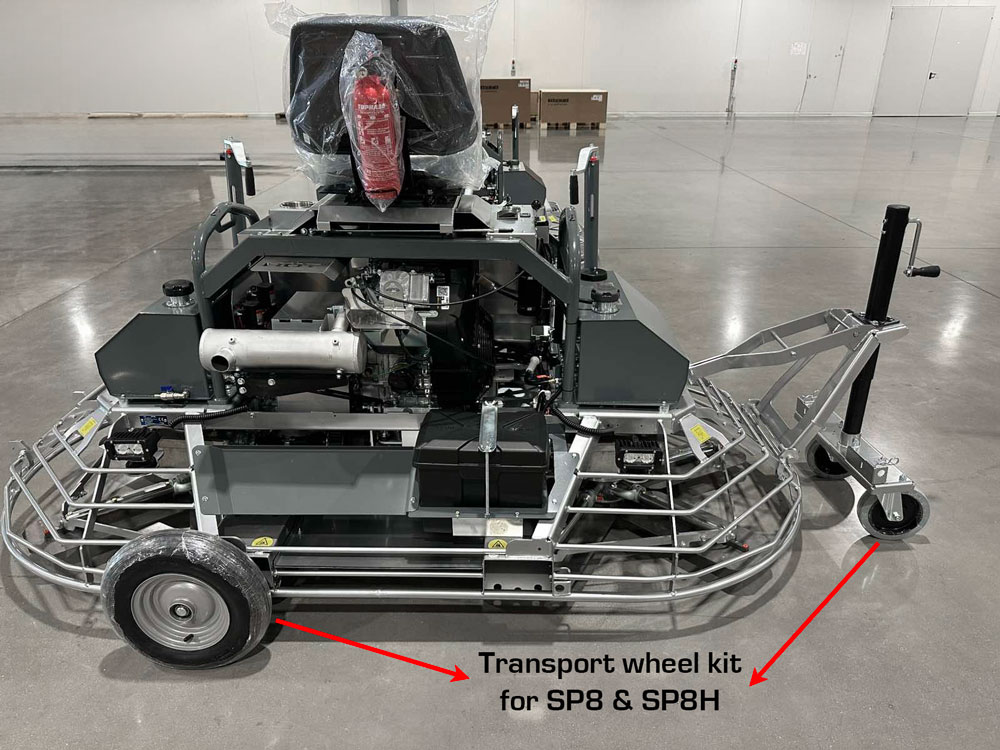

Integrated forklift pockets provide safe lifting and efficient transport without straps. Side strapping points andreinforced gussets allow secure transport without damaging seat or machine. Optional transportkit(A124).

DESIGNED FOR THE OPERATOR.

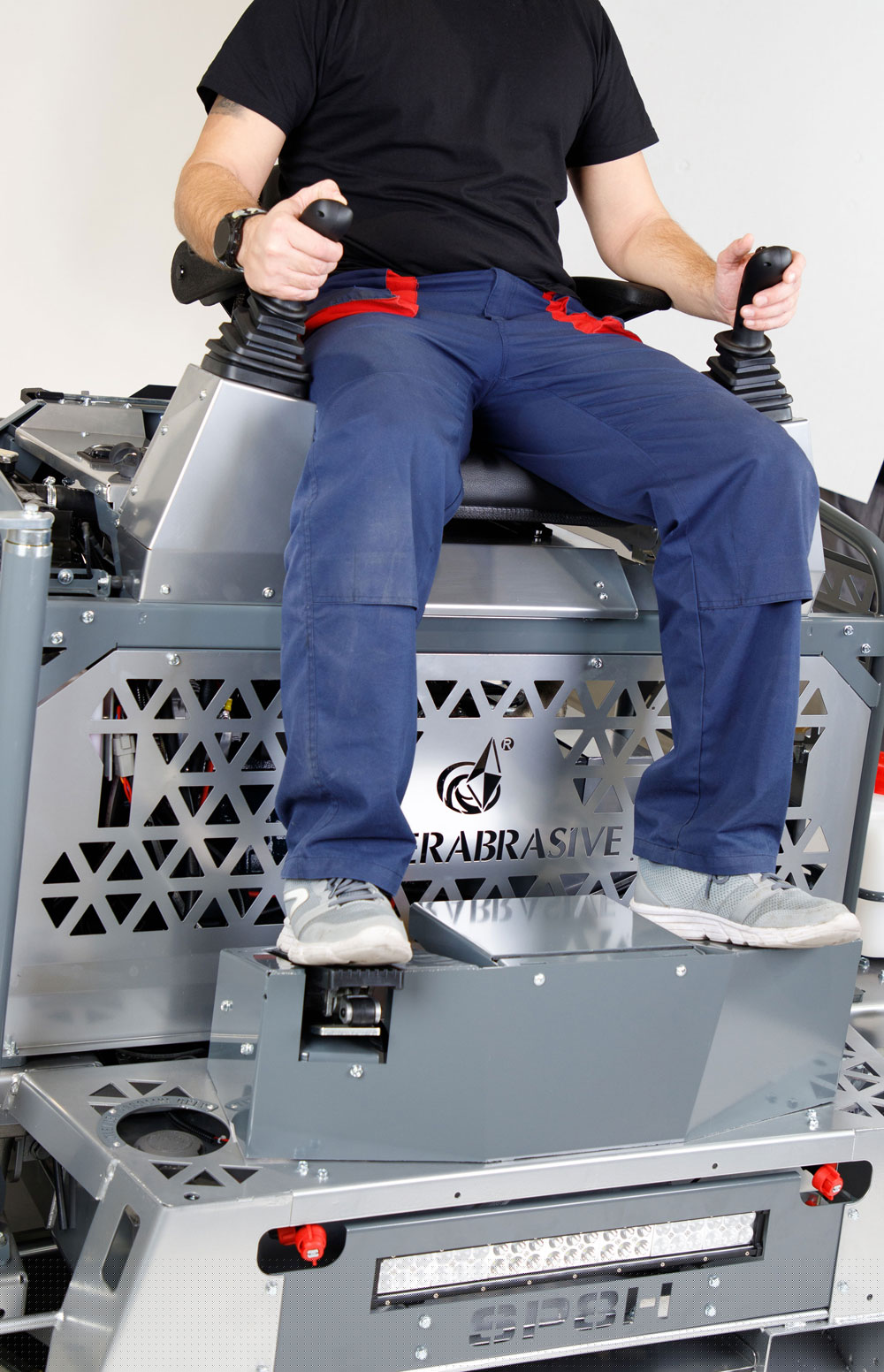

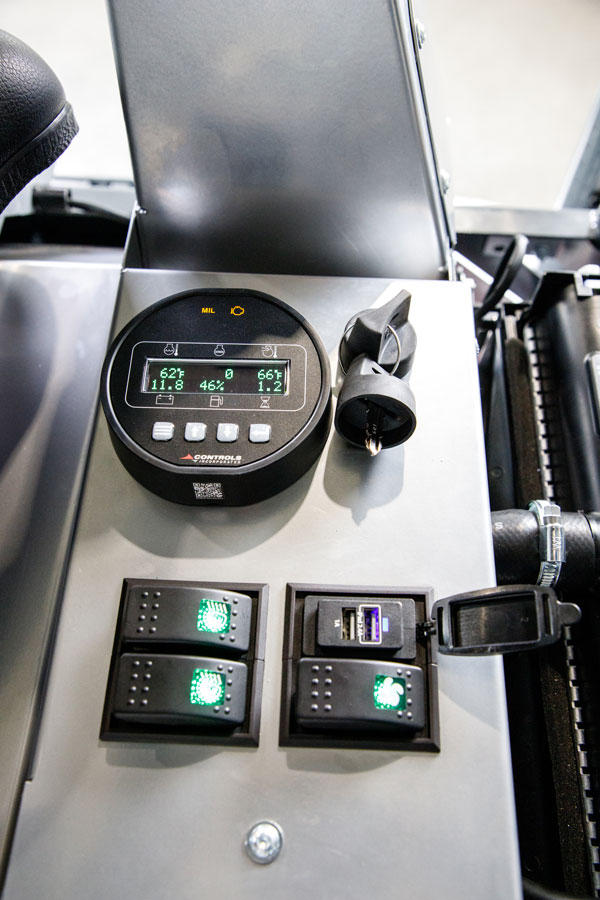

Hydro steering with two control modes reduces fatigue and improves usability; Digital information display provides real-time performance data and diagnostics; Convenience features to improve long-shift usability: Phone holder; USB charging port; Stainless steel cup holder.

DURABILITY-FOCUSED DETAILS

Central splashguard to reduce  concrete splashing onto driveline; Protected spray nozzles to minimize breakage; Extended greasing points of the spider for easier access; Sealed main shaft assembly with O-ring seals to prevent moisture  intrusion, reduce corrosion and shaft-to-spider seizure.

Concrete Finishing FAQs:

Why use pans to float concrete?

Float pans are used to remove surface imperfections, improve flatness and to compact concrete before the finishing operations. Unlike blades, floating pans distribute pressure evenly, which is essential in rebar fabrication and large-scale concrete projects.

When to start pan floating?
Correct timing is crucial when using power trowels and floating pans. Floating should never be done when bleed water is present, as this can lead to surface scaling and dusting.

When a finisher walking on the surface leaves only a 1/4-inch indentation, the concrete is ready for floating. Since walking on soft concrete can affect the surface quality, pan floating is most commonly done with riding trowels. However, smaller walk-behind or edging machines up to 36 inches are beneficial for floating edges and slab penetrations.

Best practices for using float pans?

• Use low speed to prevent damaging the surface
• Apply a forward-backward technique to minimize turn marks
• Avoid high-speed, uncontrolled floating, often called cowboy floating, as this reduces flatness
• Always make the first pass perpendicular to the direction of screeding
• Work the edges in a backward pass because forward passes can cause the concrete to rise, creating additional edge work.
• The number of passes is also important –  a minimum of two passes is required, but four passes are preferred, with each pass perpendicular to the previous one.

Float Pans Quality
The quality of float pans makes a difference for the surface finish. High-quality steel without soft spots extends pan life and ensures consistency. Pans vary in thickness, with mild dish pans (1/8-inch to 1/4-inch rise from center) being the preferred choice for super flat floors.
